Ellipse ECO
- Eaton Ellipse ECO（500-1600VA）
- 产品型号：Eaton Ellipse ECO（500-1600VA）
- 工作电压：230V
- 工作温度：0~40ºC
- 功 率：500-1600VA
热线电话：400 716 2818

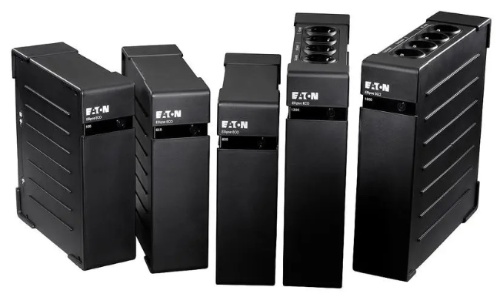

Eaton Ellipse ECO UPS
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Eaton Ellipse ECO UPS - 技术指标
| 产品快照 | |
|---|---|
| 功率等级 | 500-1600VA |
| 额定电压 | 230V |
| 频率 | 50/60Hz自适应 |
| 配置 | 塔式 |
| UPS型号 | |||
|---|---|---|---|
| 零件号码 | 额定容量 | 输入连接 | 输出连接 |
| （伏安/瓦特） | |||
| Eaton Ellipse ECO IEC | |||
| 9400-43126-00P | 500 / 300 | C14 | (3) C13, (1) C13 surge only |
| 9400-43129-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
| 9400-43132-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
| 9400-5336-00P | 800 / 500 | C14 | (3) C13, (1) C13 surge only |
| 9400-6335-00P | 1200 / 750 | C14 | (4) C13, (4) C13 surge only |
| 9400-8309-00P | 1600 / 1000 | C14 | (4) C13, (4) C13 surge only |
