伊顿UPS电源110V系列产品应用参数
时间：2024-12-24 来源：www.eaton-upsdy.com浏览次数：110
伊顿9SX系列 110V低压电源 700VA-3KVA

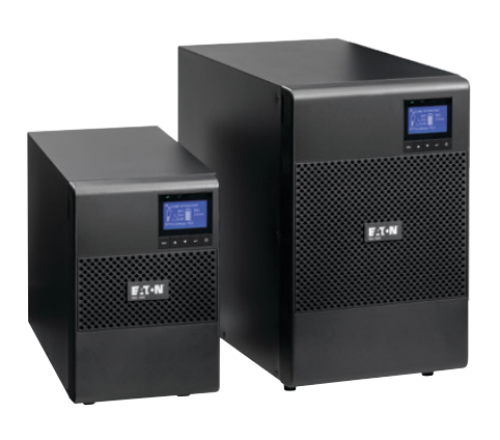

Eaton 9SX UPS
Reliable power protection for the edge and beyond
Combining reliable double-conversion topology, internal static bypass and an easy-to-ready LCD menu display, the Eaton 9SX UPS provides the highly efficient and reliable power
you expect from a 9-series UPS in a convenient tower form factor. Network, Modbus, Relay and signal input functionality enables integration into a variety of IoT and IIoT applications.
Protect the business you’ve worked hard to grow:
Reliable power for critical systems
The 9SX offers the robust double-conversion, online power protection needed for medical, light industrial, automation and mission critical IT applications. With zero transfer time to battery,
continuous filtering of power, and an internal, automatic static bypass, the 9SX ensures performance and compatibility.
Increased battery life
Eaton offers ABM technology that increases battery service life by 50 percent. ABM uses advanced charging techniques to extend battery life and provides advanced notice before batteries fail.
Get more so you can do more
More power
By providing up to 28 percent more wattage compared to traditional UPSs, the 9SX allows you to connect more devices and leave room for expanding IT systems.
More control
Automate power delivery by utilizing switchable, programmable outlets, without the need of a third party device or PDU. Programmable signal input through the RPO port also enables the
UPS to change operating modes in reaction to external events.
Gain efficiencies in your operations
Gain efficiencies in your operations
Integrate and standardize communications
Maximize uptime with remote monitoring and management of your 9SX via an Eaton connectivity and software. SNMP, serial, USB, Modbus, and relay options enable integration regardless of
the system architecture. Remote Power Off/Remote On Off signal input also manages UPS On/Off state preserving battery life during process shutdown.
Advanced LCD interface
Simplify UPS monitoring with Eaton’s advanced LCD display. Easy access to UPS alarm history, energy logs, unit serial numbers and firmware versions enable first time issue resolution right at
the source. Eight, user-selectable languages ensure success for global deployments.
Services and support:
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to fullUPS service plans, Eaton has one of the top service modelsin the industry.

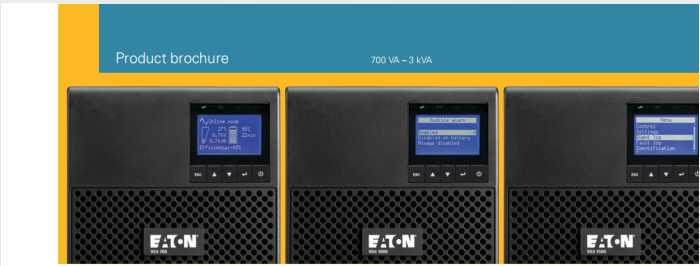

Product brochure
8
9
10
11
12
13
14
15
1
